MB 160 (Multilane Stick Pack)

The stick pack technology makes it easy to follow current market trends for single serve packaging in a more sustainable design, as it uses less material and reduces volume. We also offer a perfect finish to improve consumer satisfaction, regardless of the type of product. Our micro dosers have become a benchmark for high accuracy, small dosage of pharmaceutical products as low as 100 mg.

Enquire Now
Dosing OptionsSpecificationsFeaturesOptionsPouch Formats

Slide Filler

Free flowing Pharma Powders, Granules, Sugars, Salt, etc.

Auger Filler

Non-free flowing sticky powders like Milk, Turmeric, Pharma Powders, etc.

Liquid Filler

Liquid products like, Shampoo, Cough Syrup, Coconut Oil, Liquid Detergent, Ketchup, etc.

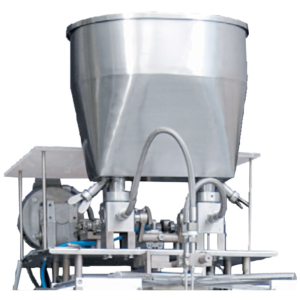

Viscous Paste Filler

Viscous Products like, Tomato Paste, Peanut Paste, Jellies, Cream, Chocolate Paste, etc.

100 MG – 50 GM
2 TRACK: UPTO 80 PPM
4 TRACK: UPTO 160 PPM
6 TRACK: UPTO 240 PPM
8 TRACK: UPTO 320 PPM
10 TRACK: UPTO 400 PPM
W: 15 – 40 MM
L: 40 – 200 MM
W: 1450 MM
L: 1100 MM
H: 1450 MM

Features

  • GMP construction
  • PLC based control system
  • 7″ Touch HMI
  • Powered film unwind
  • Film tension control
  • Photo eye for film length control
  • Auto web alignment

Utility

  • Compressed Air: 600 lpm at 6.0 Kg/sq.cm.
  • Power: 10KW
  • Complete SS version available
  • Complete flame proof version available
  • Can be upgraded to ATEX for flammable products
  • Can be upgraded to 21CFRpart11
  • Inkjet/Laser printer integration
  • Camera inspection OCR & BCR with rejection
  • CE & UL certification available
  • Jacketed hopper with hot water/oil recirculation system
  • Splicing table for easy film change-over
  • Air shaft film holder for easy film change-over

Stick Pack
