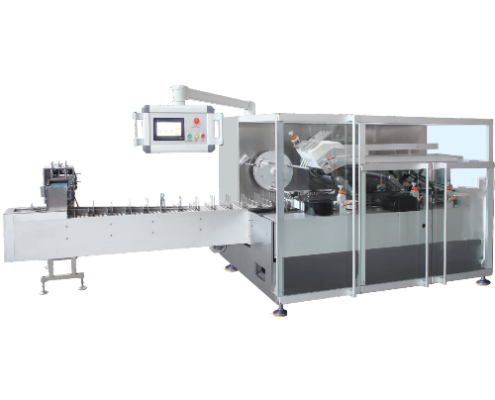

WMC 200

Horizontal continuous motion cartoner WMC 200 is designed for small/medium size products cartoning applications and is suitable for the pharmaceutical, cosmetic, food and consumers products industry. The cartoner is a fully servo driven, highly flexible, economical and robust cartoner. The continuous motion modes permit compact layouts, simple change-overs and a broad range of applications. Featuring easy change-over, various closure systems and product feeders, our customised solutions ensure guaranteed performance.

Enquire Now
Dosing OptionsSpecificationsFeaturesOptionsPouch Formats
200 Box/min
Thickness: 250 – 350 g/m2
Size Range:
L: 70 – 250 MM
W: 50 -120 MM
H: 20 – 90 MM
L: 3500 MM
W: 1350 MM
H: 1900 MM
Weight: 1600 kgs (approx)

Features

  • PLC Based control system
  • Touch Screen HMI controls
  • Japanese Omron electric parts
  • Vacuum assisted pre-break
  • Without product the carton will not be sucked down
  • Auto display trouble alarm & count of finished product
  • German sick photocell
  • Overload protection
  • Robot to achieve automatic sorting function
  • Lack of sandwich, Audio/Visual alarm
  • Visual system detect the sandwich & give feedback to the robot
  • Robot to grab the sandwich into conveyor of cartoning machine automatically when it receives feedback from the visual system
  • Safety protection: Safety door for Robot maintenance

Utility

  • Compressed Air : Working pressure greater than or equal to 6 kg
  • Power : 440V 50HZ
  • Air Consumption : 1000 LPM
  • Motor Power : 1.5KW
  • Auto Conveyor
  • Print batch numbers or dates on the cartons
  • Electric parts brand options like Siemens
  • Hot melt glue (can be American Nordson, Switzerland Robatech)

Carton
